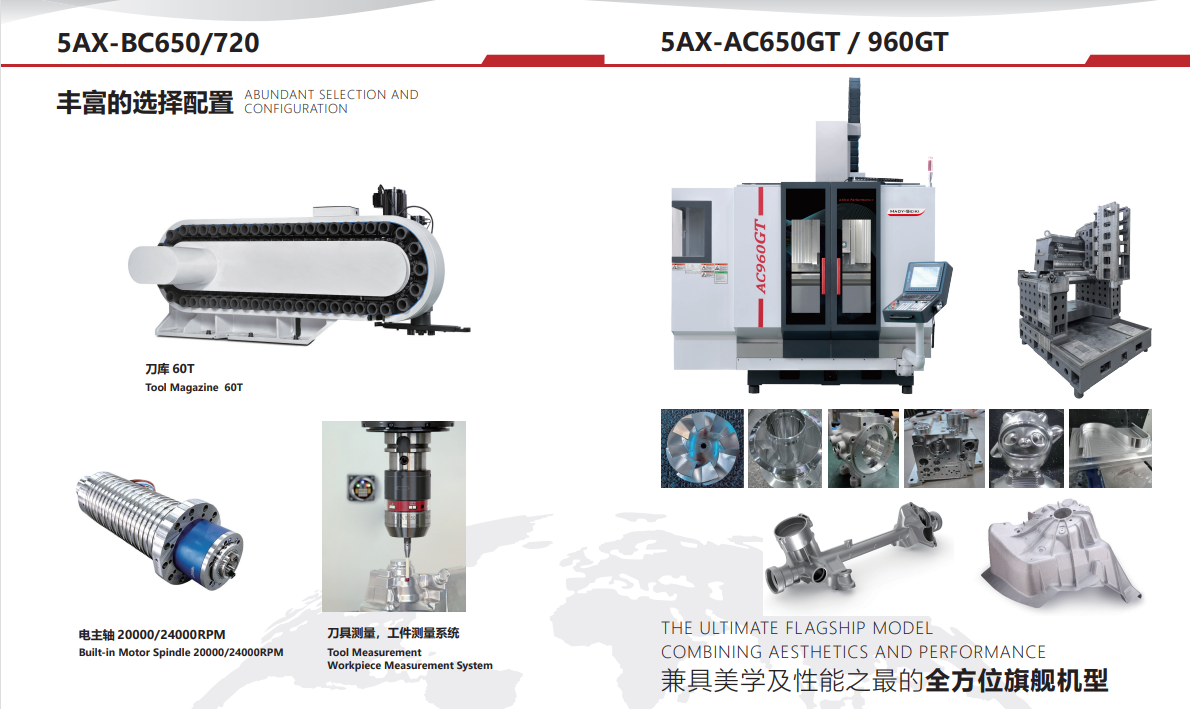

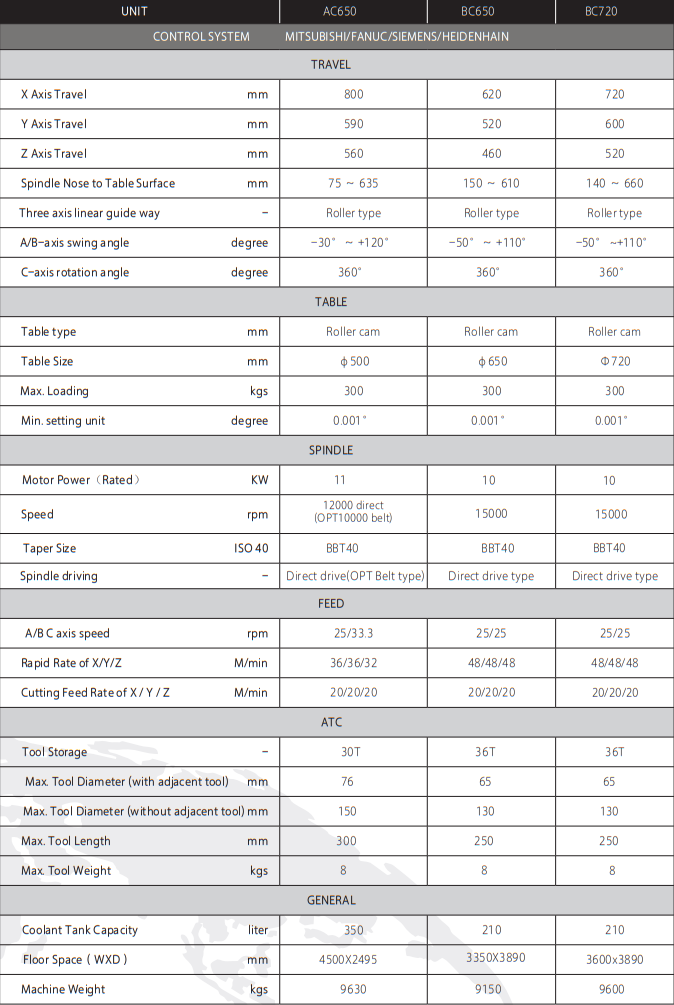

5AX-BC650/720
THE ULTIMATE FLAGSHIP MODEL COMBINING AESTHETICS AND PERFORMANCE
Apex Flagship: Unrivaled Design & Performance
Machine Features

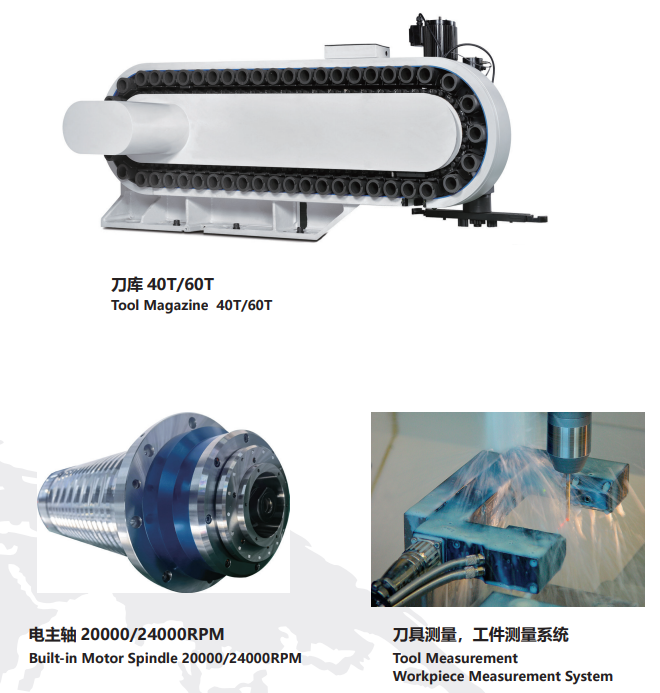

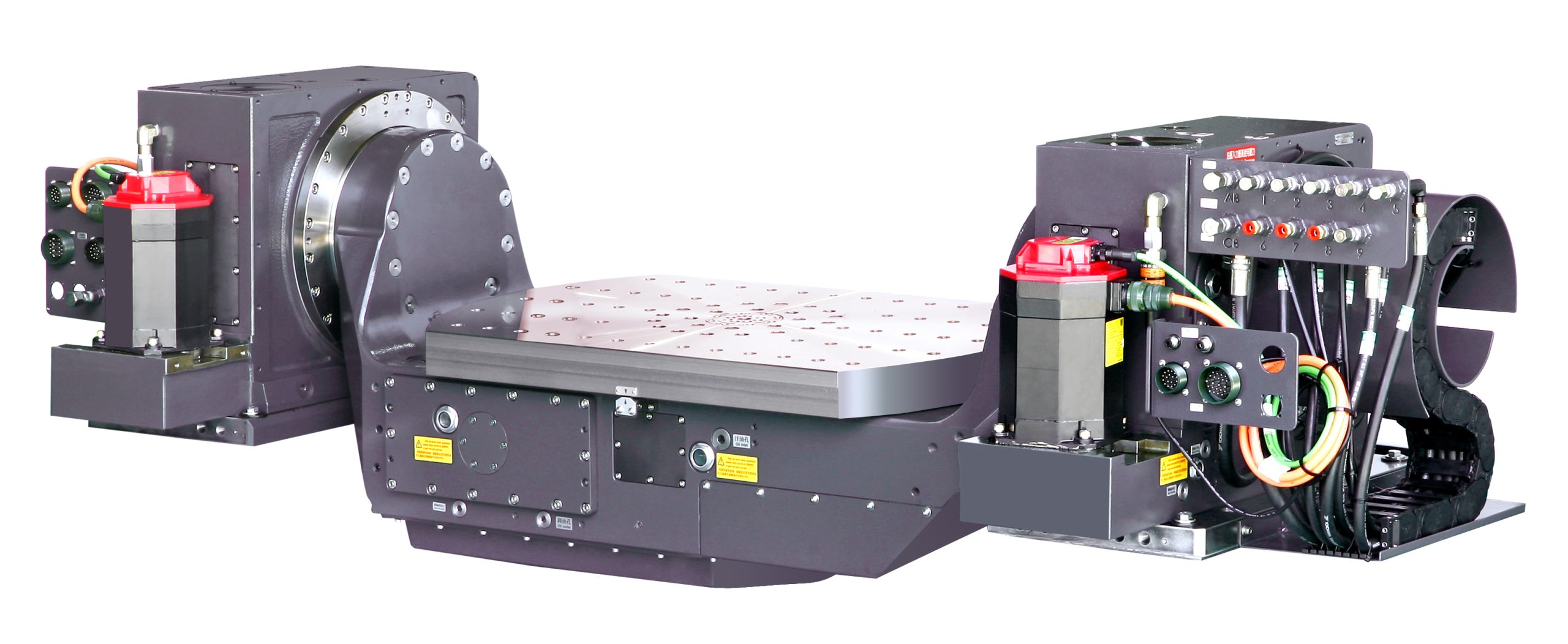

● 5-Axis Roller Cam Rotary Table Taiwan-made no back backlash,mechanism with premium accuracy ● Space Optimization 720mm compact front access (door-to-table) ● Y-Axis Reinforcement Triple-block guide system enhances rigidity ● Structural Integrity Double-ribbed column construction ● Moving Column Design Inherent precision retention capability ● Motion Components Japanese THK ball screws + roller guides ● Cutting Performance High-rigidity spindle ensures superior machining results

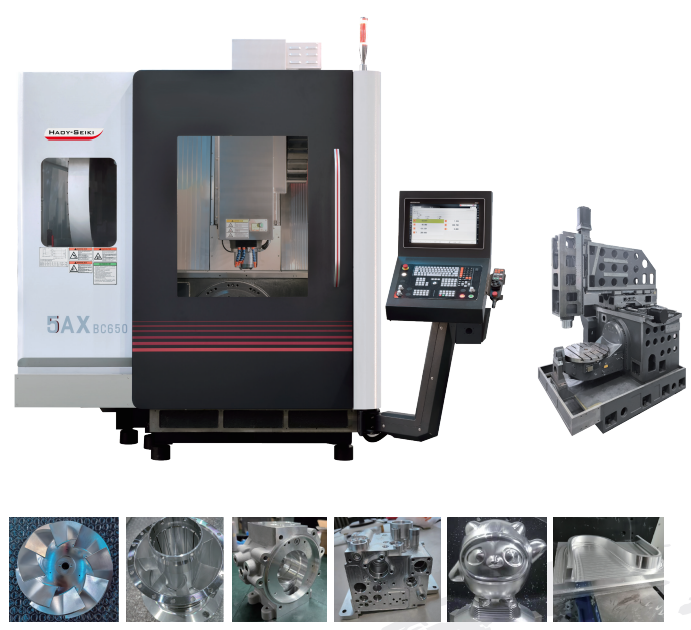

5AX-BC650 5-Axis Center | HEIDENHAIN TNC7 system. 15000rpm BBT40 spindle with 2μm precision & thermal compensation. Zero-backlash rotary table (4 arc-second) and solid Meehanite base. Blum measurement and auto calibration ensure supreme accuracy.

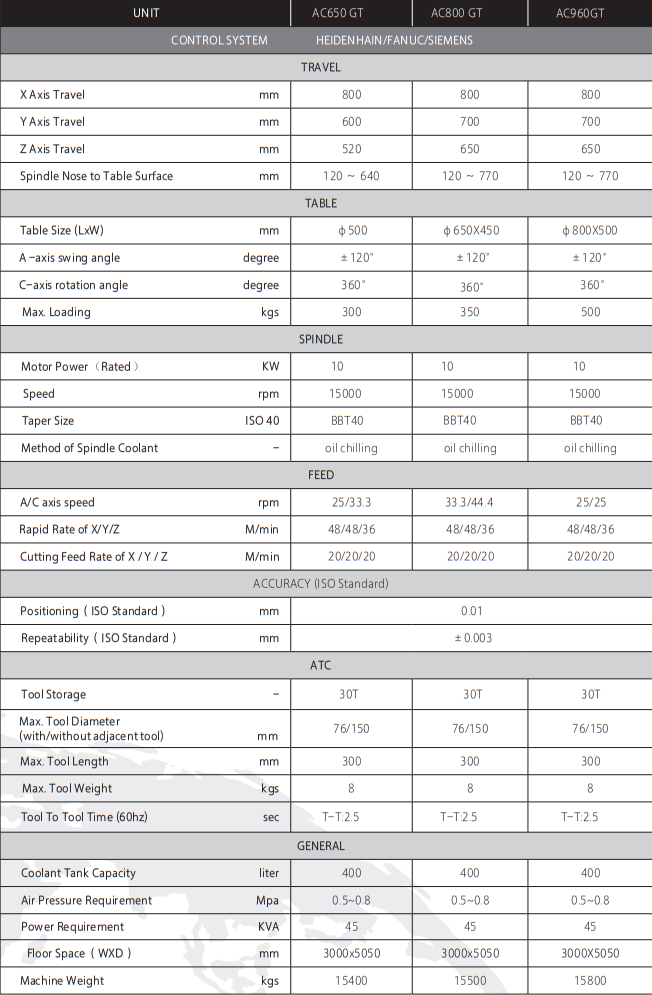

5AX-AC650GT / 960GT
THE ULTIMATE FLAGSHIP MODEL COMBINING AESTHETICS AND PERFORMANCE

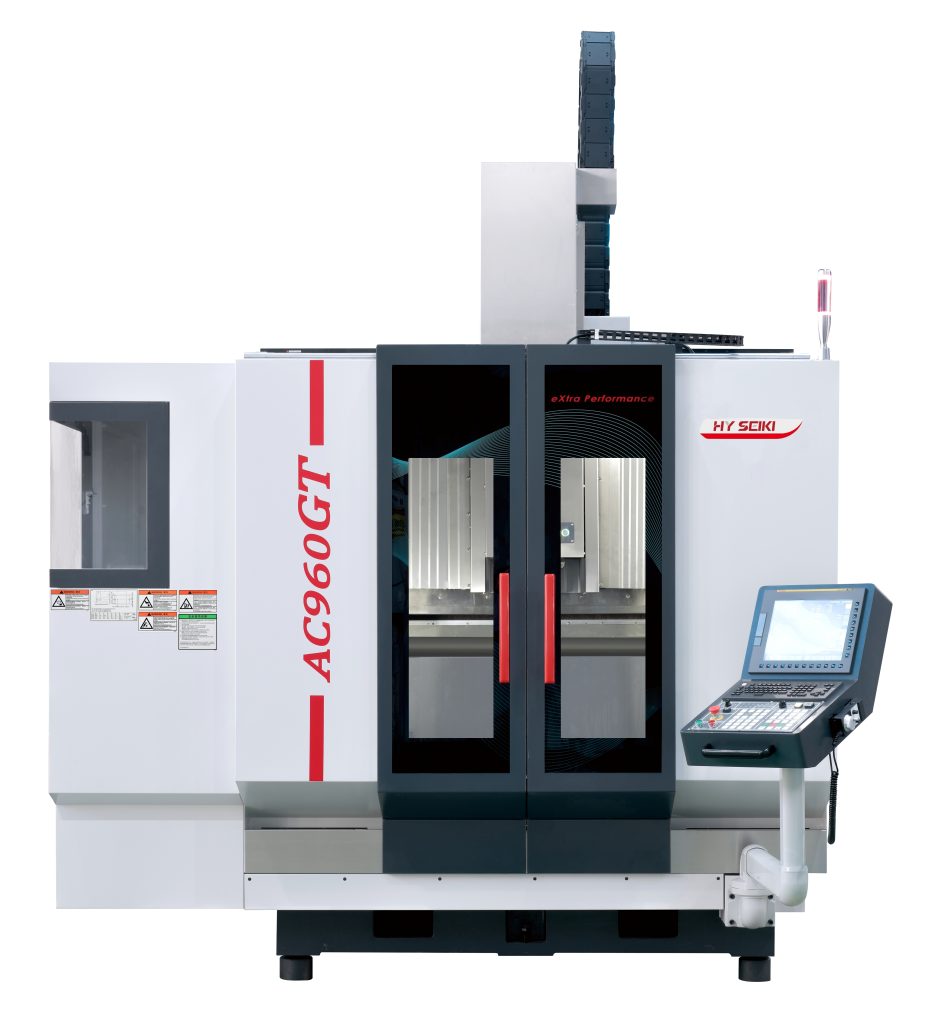

5AX-AC960GT Integrated bridge gantry & 14-ton Meehanite casting for supreme rigidity. Dual-motor driven axes deliver powerful torque. Oil-cooled spindle and THK heavy-duty guides ensure lasting precision.
Machine Features ● Zero-Backlash 5-Axi s Roller Cam Rotar y Table Taiwan-made roller cam mechanism for ultra-precision, zero-backlash operation ● Bridge-Type Gantr y Base Robust design with integrated monolithic column, ensuring permanent stability and zero deformation
● Moving Beam with Dual Y-Axis Drive Dual motor + dual ball screw system for high-speed, high-dynamic response ● Hollow-Cooled Ball Screws (3-Axis) Advanced cooling technology minimizes thermal deformation for sustained accuracy ● Premium THK Motion Components Japanese-made THK ball screws & roller guides ensure smooth, reliable motion control ● Side-Mounted Tool Magazine Streamlined design reduces tool change time for enhanced productivity ● High-Rigidity Spindle Optimized for superior cutting performance and vibration resistance.
