1.High-Performance Spindle for Versatile Machining
The 12,000 RPM high-rigidity BT40 spindle effortlessly handles rapid aluminum cutting for lightweight parts while maintaining precision under heavy-duty loads (steel, cast iron, etc.). Ideal for mixed-material production.
2.Speed & Capacity Redefined
28T servo-driven tool magazine: Lightning-fast 1.9s tool change minimizes downtime.

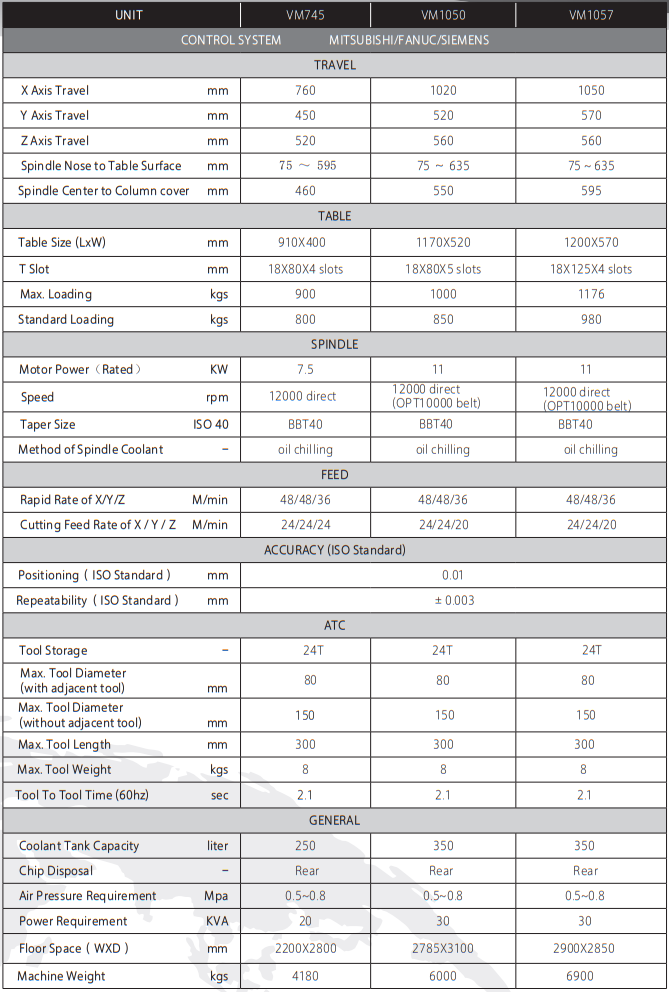

Generous travel: X-1020mm / Y-520mm / Z-520mm accommodates small to large components.
Rapid feeds: XYZ axes surge at 48/48/36 m/min with 1.0G acceleration – think sports-car agility in machining!
3.Unshakable Stability for High-Speed Demands

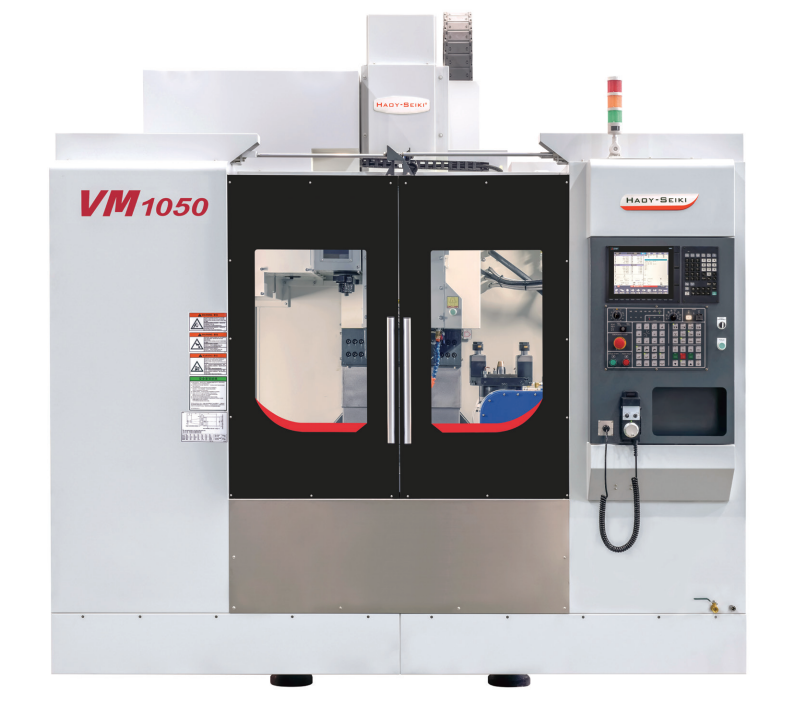

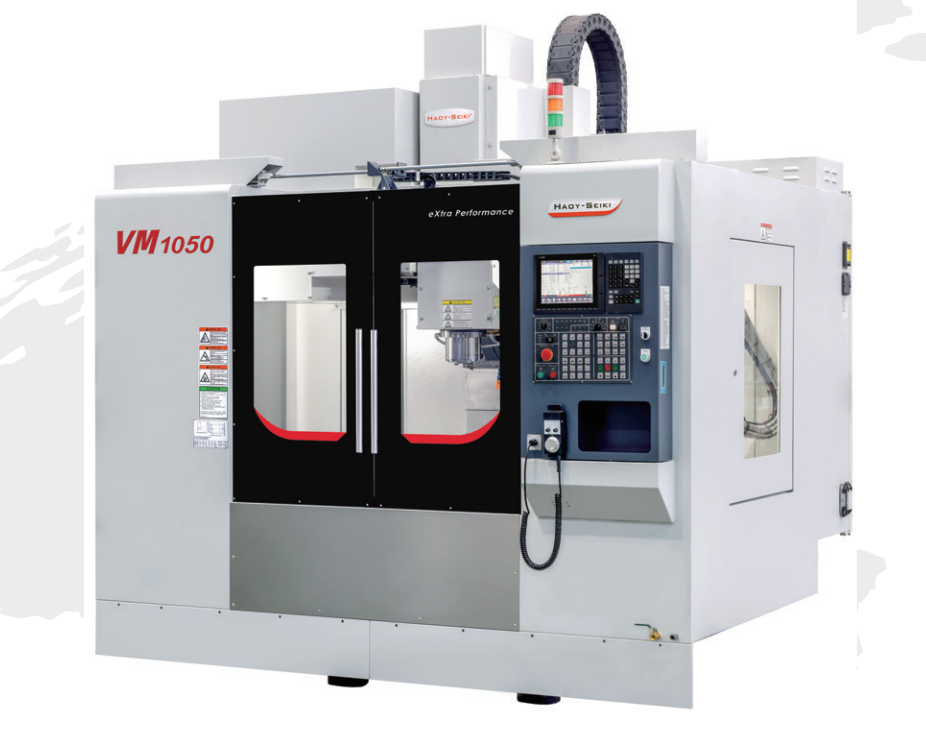

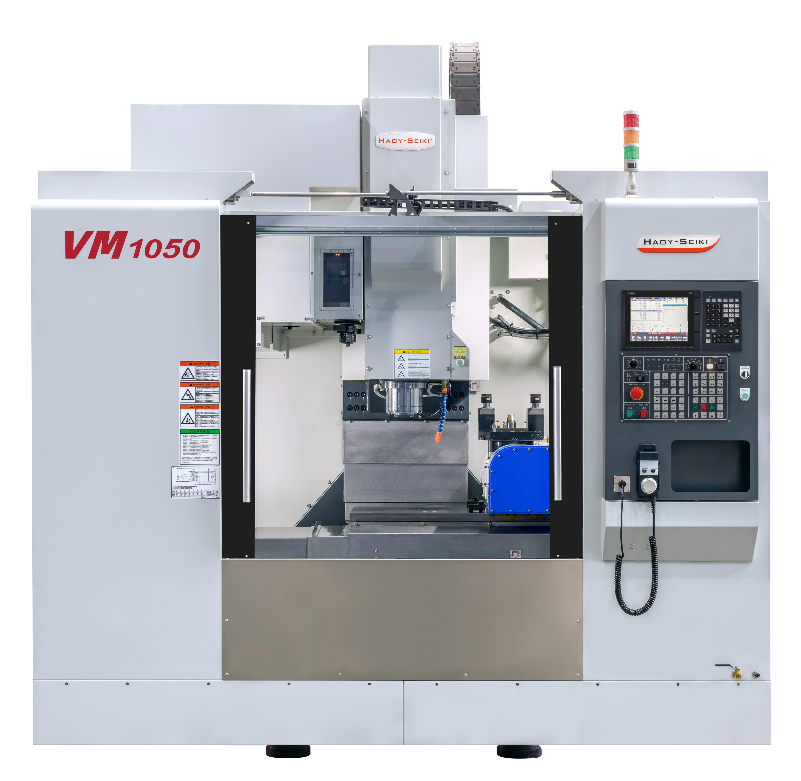

Built on a Meehanite cast iron pyramid bed, the VM1050’s rock-solid foundation absorbs vibration, ensuring micron-level accuracy even at peak speeds. Precision engineered for relentless productivity.
Unmatched Customization & Turnkey Solutions
Vertical Machining Center adapts to your workflow with customizable options:
Control systems: Mitsubishi, Fanuc, Siemens, and more
Expandable capabilities: 4th/5th-axis rotary tables, extended column height, tool magazine upgrades (BT30/BT40/BT50), and automation-ready interfaces
Stress-free production: Our turnkey project service handles everything from prototyping to final– like the 3-stage 5-axis machining solution currently completing acceptance for a Jiangsu client.
Intelligent Engineering, Global-Grade Precision
Haoyang’s proprietary innovations streamline operations:
⚡ One-click troubleshooting for tool changes
⚡ Auto tool-length calibration
⚡ Rapid tool-swap technology
Matching the speed/accuracy of premium US/Japanese brands, delivers ±0.005mm repeatability even in heavy-duty steel machining.
